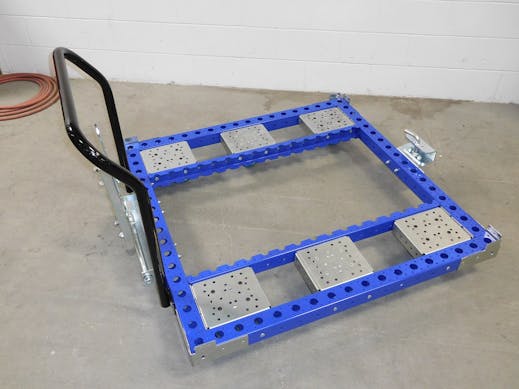

Tugger Cart - Low rider 1260 x 1260 mm

Tuggable low rider pallet cart equipped with a handlebar, floor brake and six polyurethane casters.

100% free. No commitment.

Automotive 1598 lbs
load capacity

Tugger Cart – Low rider 1260 x 1260 mm

First Name Last Name Email Company City Country Phone Quantity

Comments (optional) Attach a file (optional) Upload

Maximum file size is 10mb.

We will get back to you within 24 hours. (Unless it’s during holidays.)

Technical specifications

Category	Standard
Industry	Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy
Type of tow bar	Tongue and Hitch
Width	50 inch
Length	50 inch
Load capacity	1598 lbs
Transportation method	Manual, Tugger
Caster size	5 inch
Caster Type	Polyurethane

More info

This low rider pallet cart is great for when you’re transporting high crates, pallets or containers to fit as much material as possible in for the operators in an ergonomic height. The cart is equipped with a tow bar, handlebar, floor brake and six high quality polyurethane casters giving you excellent tracking properties and silent movement in a train.

Parts included

FlexBeam™ 1190 mm 4 Q-001-1300

FlexBeam™ 1120 mm FE 4 Q-001-1401

FlexBeam™ 1260 mm FE 2 Q-001-1500

Flexplate™ M10 12 Q-002-1162

Floor lock COLSON - 4 x 4-1/2 - 125 - 150 mm 1 Q-004-0031

Wheel Attachment - 105 x 77,5 mm 2 Q-004-1065

Caster Polyurethane - 125 mm 4 Q-004-1106

Caster Polyurethane 125 mm Fixed 2 Q-004-1107

Towing Hole 2 Q-005-1056

Spring for Tow Bar 1 Q-005-1070

Wheel Attachment Box 6 Q-005-1079

Pallet Guide Corner Plate 4 Q-005-1096

64 mm FlexBeam™ Collet 28 Q-005-1426

Washer M20 2 Q-006-0016

Allen Head - M6 x 30 mm 1 Q-006-1012

Hex Head - M14 x 60 mm 4 Q-006-1036

Locking Nut M14 4 Q-006-1039

Hex Head - M10 x 25 mm 12 Q-006-1041

Locking Nut M10 83 Q-006-1042

Washer M10 24 Q-006-1043

Locking Nut M6 1 Q-006-1050

Hex Head - M10 x 95 mm 2 Q-006-1088

Hex Head - M10 x 90 mm 8 Q-006-1132

Hex Head - M10 x 30 mm 2 Q-006-1161

Nut M10 1 Q-006-1195

Hex Head Fully Threaded - M10 x 50 mm 1 Q-006-1343

Extra Low Head - M10 x 90 mm 24 Q-006-1381

Low Allen Head - M10 x 16 mm 16 Q-006-1409

Extra Low Head Allen - M10 x 25 mm 12 Q-006-1410

Compression Spring for US Tow Hitch 1 Q-012-0007

FlexHandle low rider w floor lock plate - 700 mm 1 Q-015-0016

US Modular Tow Bar VKR - Lip - 380 mm 1 Q-017-0015

Handle for Tow Hole 1 Q-017-0022

Cotter Pin - 3,2 x 32 mm 2 Q-017-0023

Towing Lip - 28 mm 1 Q-017-1010

Tow Bar Lock Tube - 498 mm 1 Q-017-1061

Tow Attachment to Beam 1 Q-017-1080

Tow Hinge 1 Q-017-1083

FlexPlate™ 8 Q-002-1001

Hex Head - M10 x 40 4 Q-006-1208

Self Tapping Screw M6 Torx H60 x 16 32 Q-006-1384
