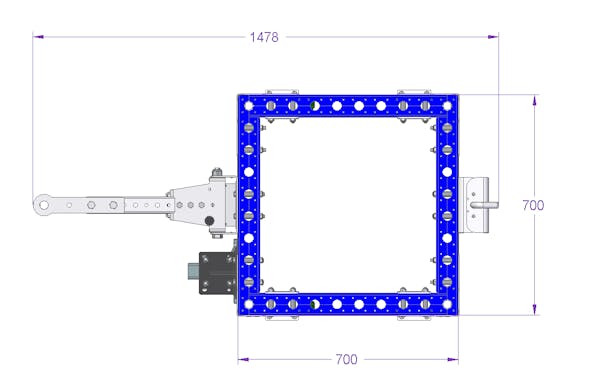

Tugger Cart - 700 x 700 mm

Small and simple tugger cart designed for transporting boxes.

100% free. No commitment.

Automotive 500 lbs
load capacity

Tugger Cart – 700 x 700 mm

First Name Last Name Email Company City Country Phone Quantity

Comments (optional) Attach a file (optional) Upload

Maximum file size is 10mb.

We will get back to you within 24 hours. (Unless it’s during holidays.)

Technical specifications

Category	Standard
Industry	Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy
Type of tow bar	Tongue and Hitch
Width	28 inch
Length	28 inch
Load capacity	500 lbs
Transportation method	Manual, Tugger
Caster size	5 inch
Caster Type	Polyurethane
Type of Load	Bins, Boxes

More info

This small tugger cart comes without a top deck and is designed for transporting small bins and boxes. This cart can have a top deck added to the structure if needed. This cart comes with an attached drop pin and hitch tow bar for use in a tugger train system.

Parts included

FlexBeam™ 630 mm 4 Q-001-1308

FlexBeam™ 700 mm FE 2 Q-001-1407

FlexBeam™ 560 mm FE 2 Q-001-1409

FlexPlate™ 8 Q-002-1001

Caster Polyurathane 125 mm 80 x 60 Swivel 2 Q-004-1220

Caster Polyure. 125 mm 80 x 60 Fixed 2 Q-004-1221

Floor Lock COLSON 4 x 4-1/2 1 Q-004-1369

Caster to Beam Attachment - 80 x 60 mm 4 Q-005-0265

M8 Damper - GN352-30-25-M8-S-55 1 Q-005-0648

Towing Hole 2 Q-005-1056

Pallet Guide Corner Plate 4 Q-005-1096

Floor Brake Plate 1 Q-005-1387

64 mm FlexBeam™ Collet 20 Q-005-1426

Allen Head - M6 x 30 mm 1 Q-006-1012

Washer 10,5 x 30 x 2,5 1 Q-006-1030

Hex Head - M14 x 60 mm 2 Q-006-1036

Locking Nut M14 2 Q-006-1039

Hex Head - M10 x 25 mm 4 Q-006-1041

Locking Nut M10 33 Q-006-1042

Washer M10 2 Q-006-1043

Locking Nut M6 1 Q-006-1050

Hex Head - M10 x 90 mm 6 Q-006-1132

Hex Head - M10 x 30 mm 2 Q-006-1161

Locking Nut M8 17 Q-006-1181

M8 x 16 mm Countersunk 16 Q-006-1214

Extra Low Head - M10 x 90 mm 14 Q-006-1381

Self Tapping Screw M6 Torx H60 x 16 32 Q-006-1384

Extra Low Head Allen - M10 x 25 mm 4 Q-006-1410

Hex Head Fully Threaded - M10 x 60 mm 3 Q-006-1502

Compression Spring for US Tow Hitch 1 Q-012-0007

US Modular Tow Bar VKR - Lip - 380 mm 1 Q-017-0015

Handle for Tow Hole 1 Q-017-0022

Tow Hinge Module 1 Q-017-0059

Towing Lip - 28 mm 1 Q-017-1010
