Q-100-0716

1 / 4

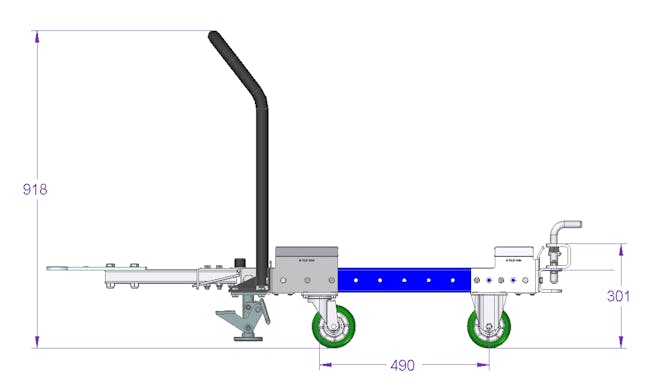

Tugger Cart - 32 x 30 Inch

Standard tugger cart designed for transporting containers and bins.

100% free. No commitment.

Automotive 2205 lbs
load capacity

Tugger Cart – 32 x 30 Inch

First Name Last Name Email Company City Country Phone Quantity

Comments (optional) Attach a file (optional) Upload

Maximum file size is 10mb.

We will get back to you within 24 hours. (Unless it’s during holidays.)

Technical specifications

Category	Standard
Industry	Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy
Type of tow bar	Tongue and Hitch
Width	30 inch
Length	33 inch
Load capacity	2205 lbs
Transportation method	Manual, Tugger
Caster size	5 inch
Caster Type	Polyurethane
Type of Load	Bins, Pallets and Containers

More info

This smaller tugger cart is equipped with an ergonomic handlebar for improved manual pushing. It is designed for improving transportation of containers and bins within facilities. It also comes equipped with a drop pin and hitch tow bar so it can be towed in a tugger train.

Parts included

FlexBeam™ 770 mm 4 Q-001-1306

FlexBeam™ 770 mm FE 2 Q-001-1406

FlexBeam™ 630 mm FE 2 Q-001-1408

FlexPlate™ 4 Q-002-1001

Caster Polyurathane 125 mm 80 x 60 Swivel 2 Q-004-1220

Caster Polyure. 125 mm 80 x 60 Fixed 2 Q-004-1221

Floor Lock COLSON 4 x 4-1/2 1 Q-004-1369

Angle corner plate - 5 mm 2 Q-005-0227

Caster to Beam Attachment - 80 x 60 mm 4 Q-005-0265

M8 Damper - GN352-30-25-M8-S-55 1 Q-005-0648

Towing Hole 2 Q-005-1056

Left Angle Corner Plate 1 Q-005-1097

Right Angle Corner Plate 1 Q-005-1099

64 mm FlexBeam™ Collet 18 Q-005-1426

Allen Head - M6 x 30 mm 1 Q-006-1012

Washer 10,5 x 30 x 2,5 1 Q-006-1030

Hex Head - M14 x 60 mm 2 Q-006-1036

Locking Nut M14 2 Q-006-1039

Hex Head - M10 x 25 mm 6 Q-006-1041

Locking Nut M10 33 Q-006-1042

Washer M10 6 Q-006-1043

Locking Nut M6 1 Q-006-1050

Hex Head - M10 x 95 mm 2 Q-006-1088

Hex Head - M10 x 90 mm 4 Q-006-1132

Hex Head - M10 x 30 mm 2 Q-006-1161

Locking Nut M8 17 Q-006-1181

M8 x 16 mm Countersunk 16 Q-006-1214

Extra Low Head - M10 x 90 mm 12 Q-006-1381

Self Tapping Screw M6 Torx H60 x 16 16 Q-006-1384

Extra Low Head Allen - M10 x 25 mm 4 Q-006-1410

Hex Head Fully Threaded - M10 x 60 mm 3 Q-006-1502

Compression Spring for US Tow Hitch 1 Q-012-0007

Handle With Bent Top + Floor Brake (North America) 1 Q-015-1060

US Modular Tow Bar VKR - Lip - 380 mm 1 Q-017-0015

Handle for Tow Hole 1 Q-017-0022

Tow Hinge Module 1 Q-017-0059

Towing Lip - 28 mm 1 Q-017-1010
