Q-100-0632

1 / 6

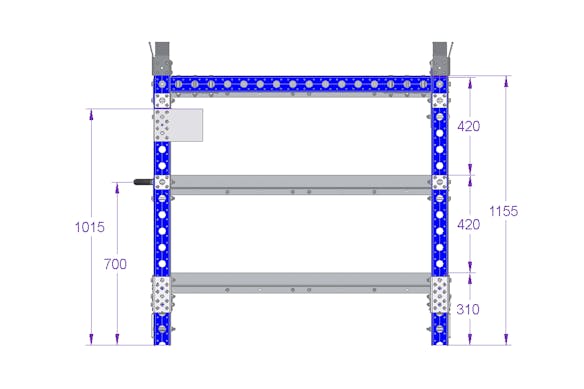

Stackable Shelf Rack - 1260 x 1260 mm

Custom designed stackable shelf rack with three shelves.

100% free. No commitment.

Automotive 992 lbs
load capacity

Stackable Shelf Rack – 1260 x 1260 mm

First Name Last Name Email Company City Country Phone Quantity

Comments (optional) Attach a file (optional) Upload

Maximum file size is 10mb.

We will get back to you within 24 hours. (Unless it’s during holidays.)

Technical specifications

Industry	Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy
Width	50 inch
Length	50 inch
Levels	3
Load capacity	992 lbs
Load Capacity per Level	331 lbs
Transportation method	Manual
Type of Load	Bins, Boxes, Misc parts, Totes

More info

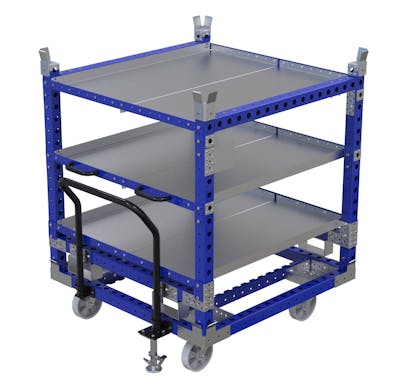

This rack has three flat shelves equipped for holding totes, bins and boxes. It is equipped with an ergonomic handlebar for easier manual transportation. It can also fit into a STILL Liftrunner tugger train system for more efficient transportation.

Parts included

FlexQube 4 Q-001-1078

FlexBeam™ 1190 mm 8 Q-001-1300

FlexBeam™ 1120 mm 4 Q-001-1301

FlexBeam™ 1120 mm FE 4 Q-001-1401

FlexPlate™ 20 Q-002-1001

L Bracket Joint 4 Q-005-0031

Label Plate - A5 1 Q-005-0387

Corner pallet guide w. bend - 5 mm 4 Q-005-0426

Fork Tunnel US - 80 mm 4 Q-005-0431

64 mm FlexBeam™ Collet 24 Q-005-1426

Heavy Duty Joint M10 4 Q-005-1580

Hex Head Fully Threaded - M8 x 20 mm 16 Q-006-1019

Hex Head - M10 x 25 mm 4 Q-006-1041

Locking Nut M10 60 Q-006-1042

Hex Head - M10 x 95 mm 8 Q-006-1088

Hex Head - M8 x 16 mm 50 Q-006-1120

Hex Head - M10 x 90 mm 28 Q-006-1132

Locking Nut M8 62 Q-006-1181

M8 Washer 32 Q-006-1183

Extra Low Head - M10 x 90 mm 20 Q-006-1381

Self Tapping Screw M6 Torx H60 x 16 128 Q-006-1384

Countersunk Self Tapping Screw - M6 x 20 32 Q-006-1385

Handle Bar 210 mm M8 2 Q-015-1037

Flat Shelf half - 1260 x 559.5 mm 6 Q-016-0290

Angled Plate - 1248 mm 6 Q-016-1238
