Stackable Flat Shelf Cart - 1260 x 840 mm

Q-100-0548

1 / 5

Stackable Flat Shelf Cart - 1260 x 840 mm

Stackable flat shelf cart for totes, bins and boxes.

100% free. No commitment.

Automotive 617 lbs
load capacity

Stackable Flat Shelf Cart – 1260 x 840 mm

First Name Last Name Email Company City Country Phone Quantity

Comments (optional) Attach a file (optional) Upload

Maximum file size is 10mb.

We will get back to you within 24 hours. (Unless it’s during holidays.)

Technical specifications

Category	Flat Shelf
Industry	Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy
Length	50 inch
Load capacity	617 lbs
Levels	4
Load Capacity per Level	154 lbs
Width	33 inch
Transportation method	LiftRunner Frames, Manual
Caster size	8 inch
Caster Type	Nylon

More info

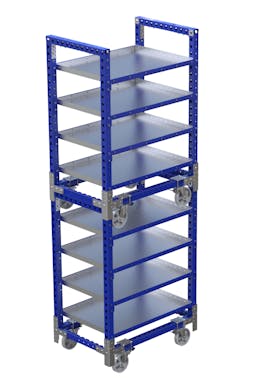

This custom designed flat shelf cart was designed to be stacked on top of each other. It is equipped with four flat shelves for the totes, bins and boxes. The shelves can be easily adjusted higher or lower depending on your materials. It comes equipped with four high quality polyamide casters for easier handling.

Parts included

FlexBeam™ - 1470 mm 8 Q-001-1296

FlexBeam™ 1190 mm 4 Q-001-1300

FlexBeam™ 840 mm FE 4 Q-001-1405

FlexBeam™ 700 mm FE 2 Q-001-1407

FlexPlate™ 12 Q-002-1001

Flexplate™ M10 20 Q-002-1162

FlexPlate™ half 12 Q-002-1369

Wheel Attachment - 105 x 77,5 mm 4 Q-004-1065

Polyamide Caster 200 mm with Brake 2 Q-004-1351

Polyamide Caster 200 mm without Brake 2 Q-004-1352

L Bracket Joint 4 Q-005-0031

Beam to Beam Corner Plate for stackable carts - 5 mm 4 Q-005-0372

64 mm FlexBeam™ Collet 12 Q-005-1426

Hex Head - M10 x 25 mm 12 Q-006-1041

Locking Nut M10 88 Q-006-1042

Hex Head - M8 x 16 mm 48 Q-006-1120

Hex Head - M10 x 90 mm 56 Q-006-1132

Locking Nut M8 48 Q-006-1181

Extra Low Head - M10 x 90 mm 20 Q-006-1381

Self Tapping Screw M6 Torx H60 x 16 120 Q-006-1384

Flat Shelf - 1119 x 840 mm 4 Q-016-1237

Angled Plate - 1248 mm 8 Q-016-1238
