Q-100-0501

Shadow Board Cart - 91 x 64.5

Custom designed shadow board cart.

100% free. No commitment.

Automotive 300 lbs
load capacity

Shadow Board Cart – 91 x 64.5

First Name Last Name Email Company City Country Phone Quantity

Comments (optional) Attach a file (optional) Upload

Maximum file size is 10mb.

We will get back to you within 24 hours. (Unless it’s during holidays.)

Technical specifications

Category	Hanging Carts
Industry	Automotive, Commercial Vehicles, Tier One Suppliers

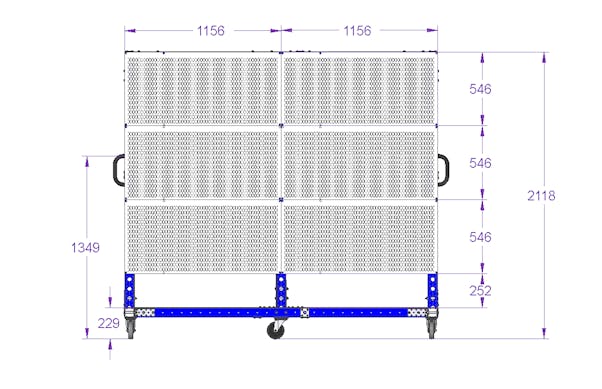

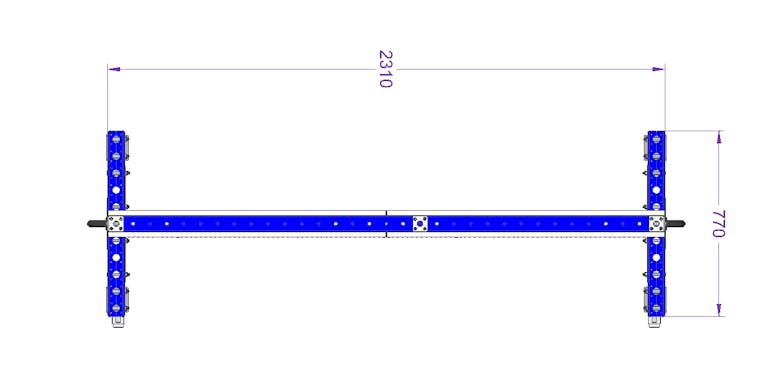

Length	91 inch
Width	30 inch
Load capacity	300 lbs
Transportation method	Manual
Caster size	5 inch
Caster Type	Nylon, Polyurethane
Type of Load	Misc parts

More info

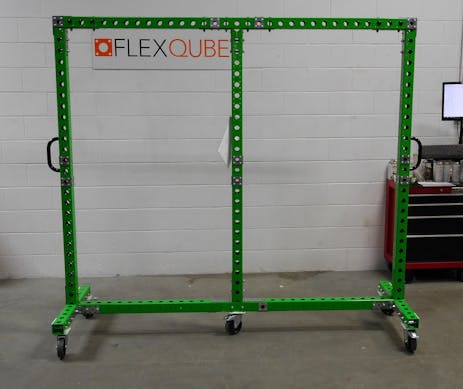

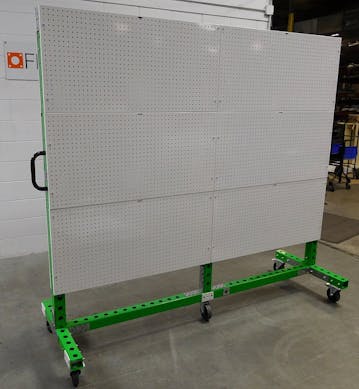

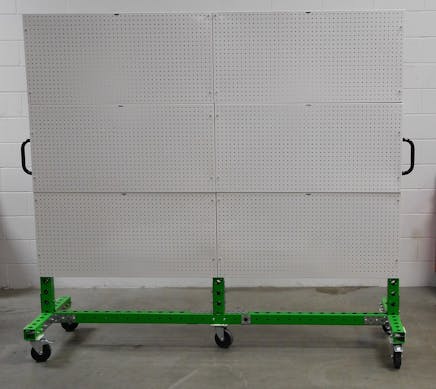

This large shadow board cart is designed for tools to be hung up on each side of the board. This is so the operators can access the tools at a more ergonomic height and is used along the assembly line. It comes with five swivel casters for easier handling.

Parts included

FlexQube 2 Q-001-1078

FlexBeam™ - 1260 mm 4 Q-001-1299

FlexBeam™ 980 mm 8 Q-001-1303

FlexBeam™ 910 mm 2 Q-001-1304

FlexBeam™ 840 mm 6 Q-001-1305

FlexBeam™ 770 mm FE 4 Q-001-1406

FlexPlate™ 13 Q-002-1001

Swivel Caster - 125 mm 1 Q-004-1363

125 mm Swivel Caster with Brake 4 Q-004-1364

L Bracket Joint 10 Q-005-0031

T-Joint 2 Q-005-0065

Caster to Beam Attachment - 80 x 60 mm 5 Q-005-0265

64 mm FlexBeam™ Collet 24 Q-005-1426

Locking Nut M10 42 Q-006-1042

Hex Head - M8 x 16 mm 4 Q-006-1120

Hex Head - M10 x 90 mm 20 Q-006-1132

Locking Nut M8 20 Q-006-1181

M8 Washer 4 Q-006-1183

M8 x 16 mm Countersunk 20 Q-006-1214

Extra Low Head - M10 x 90 mm 20 Q-006-1381

Self Tapping Screw M6 Torx H60 x 16 92 Q-006-1384

Extra Low Head Allen - M10 x 25 mm 2 Q-006-1410

Handle Bar 210 mm M8 2 Q-015-1037

Pegboard 21.5 x 0.8 x 45.5 inches 12 Q-016-0250
