Roller Transfer cart - 1120 x 560 mm

Specially made roller transfer cart for transporting materials.

100% free. No commitment.

Automotive 882 lbs
load capacity

Roller Transfer cart – 1120 x 560 mm

First Name Last Name Email Company City Country Phone Quantity

Comments (optional) Attach a file (optional) Upload

Maximum file size is 10mb.

We will get back to you within 24 hours. (Unless it’s during holidays.)

Technical specifications

Category	Conveyor
Industry	Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy
Width	22 inch
Length	44 inch
Load capacity	882 lbs
Transportation method	Manual
Caster size	8 inch
Caster Type	Nylon

More info

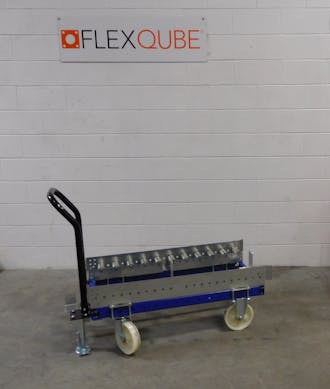

This roller transfer cart was custom design for transporting containers. The rollers allow the containers to be easily slid on and off the cart when docked into the correct position. This cart also comes with an ergonomic handlebar for easier manual transportation.

Parts included

FlexTube™ 70 mm - Locking Nut 2 Q-000-1101

FlexTube™ 560 mm 1 Q-000-1182

FlexTube™ 630 mm 1 Q-000-1312

FlexQube 6 Q-001-1078

FlexBeam™ 1050 mm 4 Q-001-1302

FlexBeam™ 560 mm FE 2 Q-001-1409

FlexPlate™ 13 Q-002-1001

Wheel Attachment - 105 x 77,5 mm 4 Q-004-1065

Polyamide Caster 200 mm without Brake 2 Q-004-1352

Polyamide Caster 200 mm Fixed 2 Q-004-1354

Floor Brake LTL - 200 mm 1 Q-004-1359

Foot pedal 1 Q-005-0236

Rotation handle and lock - 345 mm 3 Q-005-0289

Locking Guide Plate 1 Q-005-0290

100 mm Roller Guide with end guide edges - 1120 mm 1 Q-005-0392

100 mm Roller Guide with end guides - 1120 mm 1 Q-005-0393

Roller Transfer cart - 1120 x 560 mm 22 Q-100-0579

M10 Lifting Eye Bolt - 17 mm 2 Q-006-0020

M6 x 20 K6S 10.9 Round Head (black) 12 Q-006-1018

Hex Head - M10 x 25 mm 8 Q-006-1041

Locking Nut M10 28 Q-006-1042

Locking Nut M6 16 Q-006-1050

Hex Head - M10 x 90 mm 16 Q-006-1132

Self Tapping Screw M6 Torx H60 x 16 96 Q-006-1384

Hex Head Fully Threaded - M10 x 60 mm 2 Q-006-1502

Tow Bar Pull Spring - 245 mm 1 Q-012-0008

Handlebar / Floor Brake Attachment US 1 Q-015-0029

Handlebar Attachment US 1 Q-015-0031

Tube for handlebar US - 350 mm 1 Q-015-0045
