Q-100-1165

1 / 4

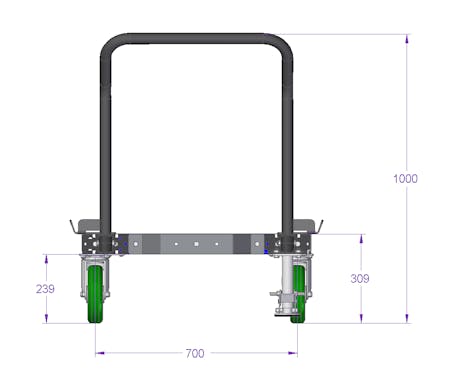

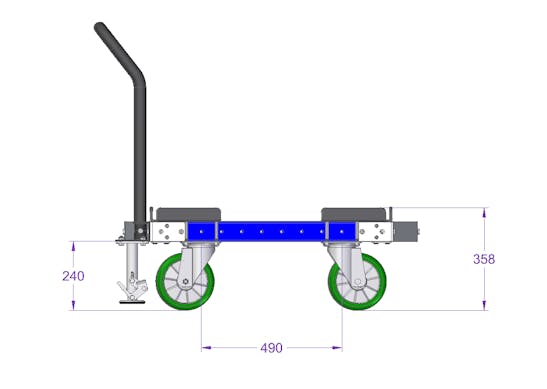

Pallet Cart - 770 x 840 mm

Pallet push cart equipped with a handlebar and four polyurethane swivel casters.

100% free. No commitment.

Automotive 2425 lbs
load capacity

Pallet Cart – 770 x 840 mm

First Name Last Name Email Company City Country Phone Quantity

Comments (optional) Attach a file (optional) Upload

Maximum file size is 10mb.

We will get back to you within 24 hours. (Unless it’s during holidays.)

Technical specifications

Category	Standard
Industry	Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy
Width	30 inch
Length	33 inch
Load capacity	2425 lbs
Transportation method	LiftRunner Frames, Manual
Caster size	8 inch
Caster Type	Polyurethane

More info

Push cart used for the transportation of pallets and containers, can also be used in a frame. The cart is equipped with a handlebar, floor brake and four polyurethane swivel casters making it easy to move manually.

Parts included

FlexBeam™ 770 mm 2 Q-001-1306

FlexBeam™ 700 mm 2 Q-001-1307

FlexBeam™ 770 mm FE 2 Q-001-1406

FlexBeam™ 700 mm FE 2 Q-001-1407

FlexPlate™ 8 Q-002-1001

Stiffener - Outside 4 Q-002-1050

Caster Polyurethane - 200 mm Swivel 4 Q-004-1211

US Floor Brake - 200 mm 1 Q-004-1613

Pallet Guide Wheel Attachment Right 2 Q-005-0062

Pallet Guide Wheel Attachment Left 2 Q-005-0063

64 mm FlexBeam™ Collet 12 Q-005-1426

Fully Threaded - M10 x 120 mm 2 Q-006-1037

Hex Head - M10 x 25 mm 6 Q-006-1041

Locking Nut M10 40 Q-006-1042

Hex Head - M10 x 90 mm 6 Q-006-1132

Extra Low Head - M10 x 90 mm 22 Q-006-1381

Self Tapping Screw M6 Torx H60 x 16 40 Q-006-1384

Countersunk Self Tapping Screw - M6 x 20 48 Q-006-1385

Extra Low Head Allen - M10 x 25 mm 2 Q-006-1410

Hex Head Fully Threaded - M10 x 60 mm 2 Q-006-1502

Handlebar / Floor Brake Attachment US 1 Q-015-0029

Handlebar Attachment US 1 Q-015-0031

Tube for Handlebar US 1 Q-015-0032
