Q-100-1724

1 / 3

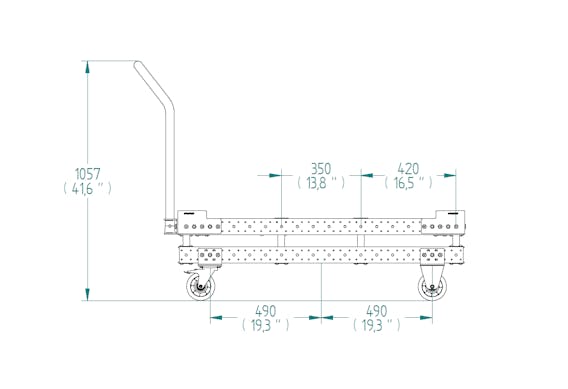

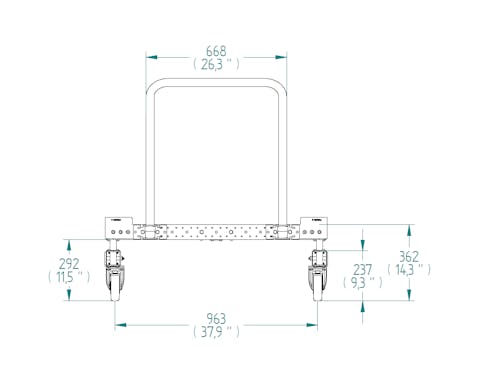

Pallet Cart - 1050 x 1260 mm

Cart for transporting pallets and containers, to be integrated with an AGV.

100% free. No commitment.

Automotive 1246 lbs
load capacity

Pallet Cart – 1050 x 1260 mm

First Name Last Name Email Company City Country Phone Quantity

Comments (optional) Attach a file (optional) Upload

Maximum file size is 10mb.

We will get back to you within 24 hours. (Unless it’s during holidays.)

Technical specifications

Category	Standard
Industry	Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy
Width	41 inch
Length	50 inch
Load capacity	1246 lbs
Transportation method	LiftRunner Frames, Manual
Caster size	5 inch
Caster Type	Polyurethane
Type of Load	Pallets and Containers

More info

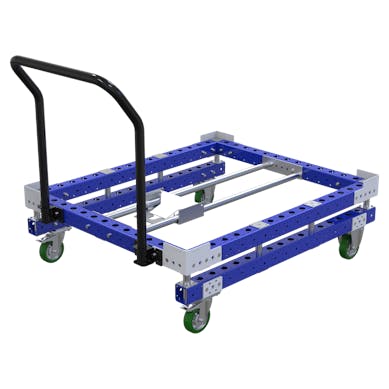

This cart is used to transport pallets or containers and is equipped with an attachment in the middle section of the frame to connect the cart to an AGV. The cart utilizes a removable handlebar, corner pallet guides and four 125 mm diameter Polyurethane casters.

Parts included

Flexplate M10 Countersunk 8 Q-002-0009

FlexPlate™ 6 Q-002-1001

Flexplate™ M10 10 Q-002-1162

Flexplate™ 30,5 mm hole 4 Q-002-1320

Caster Polyure. 125 mm 80 x 60 Fixed 2 Q-004-1221

Caster to Beam Attachment - 80 x 60 mm 4 Q-005-0265

Spring Threaded Tube Connectors 24 Q-005-0469

Pallet Guide Corner Plate 4 Q-005-1096

64 mm FlexBeam™ Collet 28 Q-005-1426

Wheel Attachment - 80 x 60 mm 4 Q-005-1722

Attachment Plate - 70 x 260 mm 2 Q-005-2373

Allen Head - M6 x 30 mm 4 Q-006-1012

Locking Nut M10 34 Q-006-1042

Locking Nut M6 4 Q-006-1050

M6 Washer 8 Q-006-1076

Hex Head - M10 x 90 mm 8 Q-006-1132

Locking Nut M8 16 Q-006-1181

Countersunk - M8 x 20 16 Q-006-1282

Extra low head [1,5 mm] M10x40 mm 6 Q-006-1361

Extra Low Head - M10 x 90 mm 22 Q-006-1381

Self Tapping Screw M6 Torx H60 x 16 72 Q-006-1384

Countersunk Self Tapping Screw - M6 x 20 32 Q-006-1385

Low Allen Head - M10 x 16 mm 4 Q-006-1409

Extra Low Head Allen - M10 x 25 mm 16 Q-006-1410

AGV Pull Attachment 1 Q-013-0008

Steel Clamp 4 Q-013-0009

Handlebar Attachment US 2 Q-015-0031

Tube for Handlebar US 1 Q-015-0032

FlexBeam™ - 980 mm 4 Q-020-0980

Outer Tube (No Plate) - 195 mm 8 Q-025-0195

Outer Tube (No Plate) - 1110 mm 2 Q-025-1110
