Q-100-1002

1 / 6

Mother Cart - 2030 x 1260 mm

Mother frame that can hold four smaller daughter carts.

100% free. No commitment.

Automotive 2205 lbs
load capacity

Mother Cart – 2030 x 1260 mm

First Name Last Name Email Company City Country Phone Quantity

Comments (optional) Attach a file (optional) Upload

Maximum file size is 10mb.

We will get back to you within 24 hours. (Unless it’s during holidays.)

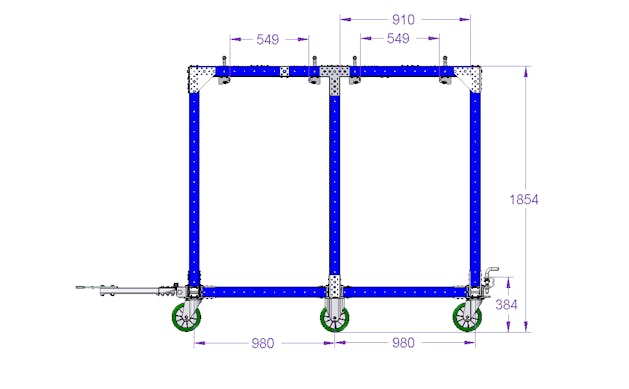

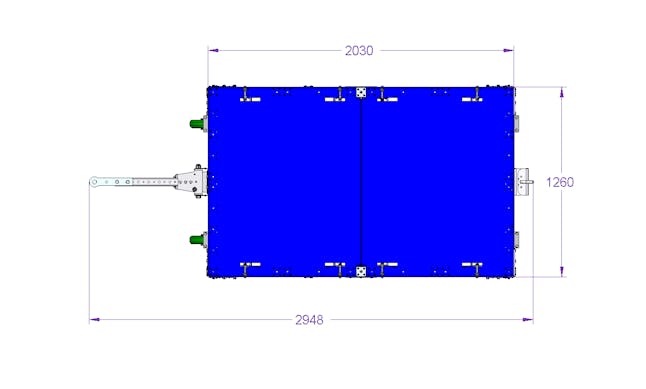

Technical specifications

Category	Mother Carts
Industry	Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy
Type of tow bar	Tongue and Hitch
Width	50 inch
Length	80 inch
Load capacity	2205 lbs
Transportation method	Mother-Daughter Cart, Tugger
Caster size	8 inch
Caster Type	Polyurethane
Type of Load	Daughter Cart

More info

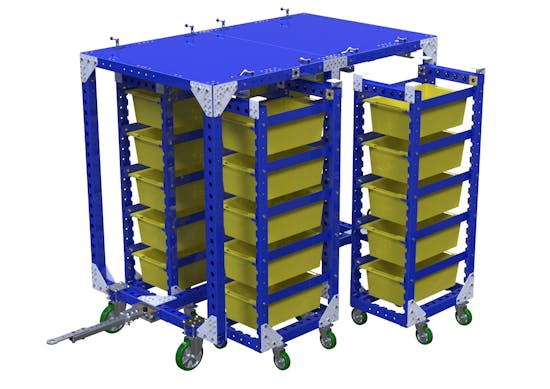

This small mother cart can have 4 smaller daughter carts placed within this frame. This cart is designed to hold 4 small shelf carts which can be disconnected from this mother frame and left at different work and assembly stations (learn more about Mother-Daughter solutions). This cart is equipped with a drop pin and hitch tow bar and is designed to be transported using a tugger train (learn more about transitioning from forklifts to tugger trains here).

Parts included

FlexBeam™ - 1330 mm 4 Q-001-1298

FlexBeam™ 630 mm 4 Q-001-1308

FlexBeam™ 560 mm 4 Q-001-1309

FlexBeam™ 1260 mm FE 6 Q-001-1500

FlexBeam™ - 1470 mm FE 10 Q-001-1503

FlexBeam™ 1540 mm FE 2 Q-001-1504

FlexBeam STS FE - 1890 mm 2 Q-001-1509

FlexPlate™ 12 Q-002-1001

Flexplate™ M10 2 Q-002-1162

Wheel Attachment - 105 x 77,5 mm 8 Q-004-1065

Caster Polyurethane - 200 mm Swivel 4 Q-004-1211

Caster Polyurethan 200 mm Fixed IP2 2 Q-004-1212

Cross Joint - 240 x 240 mm 2 Q-005-0021

T-Joint 2 Q-005-0065

M10 - Collet - 6 mm 8 Q-005-0105

Daughter cart catcher - 1260 mm 4 Q-005-0165

Spring Threaded Tube Connectors 2 Q-005-0469

Triangle Joint 20 Q-005-0483

M8 Damper - GN352-30-25-M8-S-55 1 Q-005-0648

Towing Hole 2 Q-005-1056

Spherical Knob 8 Q-005-1146

64 mm FlexBeam™ Collet 40 Q-005-1426

Heavy Duty Joint M10 2 Q-005-1580

Daughter Cart Locking Plate 8 Q-005-1730

Allen Head - M6 x 30 mm 1 Q-006-1012

Washer 10,5 x 30 x 2,5 1 Q-006-1030

Hex Head - M14 x 60 mm 2 Q-006-1036

Locking Nut M14 2 Q-006-1039

Hex Head - M10 x 25 mm 20 Q-006-1041

Locking Nut M10 99 Q-006-1042

Washer M10 6 Q-006-1043

Locking Nut M6 1 Q-006-1050

Hex Head - M10 x 95 mm 20 Q-006-1088

Hex Head - M8 x 16 mm 6 Q-006-1120

Hex Head - M10 x 90 mm 36 Q-006-1132

Hex Head - M10 x 30 mm 2 Q-006-1161

Locking Nut M8 7 Q-006-1181

Nut M10 8 Q-006-1195

Hex Head - M10 x 20 mm 8 Q-006-1232

Extra Low Head - M10 x 90 mm 10 Q-006-1381

Self Tapping Screw M6 Torx H60 x 16 388 Q-006-1384

Extra Low Head Allen - M10 x 25 mm 2 Q-006-1410

Hex Head Fully Threaded - M10 x 60 mm 11 Q-006-1502

Compression Spring for US Tow Hitch 1 Q-012-0007

Top shelf for mother - 1260 x 1010 mm 2 Q-016-0539

US Modular Tow Bar VKR - LIP - 520 mm 1 Q-017-0014

Handle for Tow Hole 1 Q-017-0022

Tow Hinge Module 1 Q-017-0059

Towing Lip - 28 mm 1 Q-017-1010
