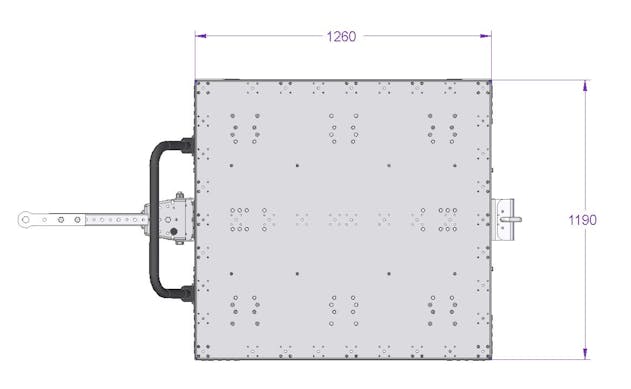

Low Rider Tugger Cart - 1260 x 1190 mm

Simply designed low rider tugger cart for pallet carts.

100% free. No commitment.

Automotive 1499 lbs
load capacity

Low Rider Tugger Cart – 1260 x 1190 mm

First Name Last Name Email Company City Country Phone Quantity

Comments (optional) Attach a file (optional) Upload

Maximum file size is 10mb.

We will get back to you within 24 hours. (Unless it’s during holidays.)

Technical specifications

Category	Flat Deck
Industry	Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy
Type of tow bar	Tongue and Hitch
Width	47 inch
Length	50 inch
Load capacity	1499 lbs
Transportation method	Manual, Tugger
Caster size	5 inch
Caster Type	Polyurethane

More info

Low rider tugger cart for transportation of pallets/totes/bins and boxes. The cart is equipped with a removable handlebar, tongue and hitch tow bar aswell as six high quality polyurethane casters, two fixed and four swivel for excellent tracking properties aswell as silent transportation.

Parts included

FlexBeam™ 1120 mm 4 Q-001-1301

FlexBeam™ 1120 mm FE 4 Q-001-1401

FlexBeam™ 1260 mm FE 2 Q-001-1500

FlexPlate™ 8 Q-002-1001

Wheel Attachment - 105 x 77,5 mm 2 Q-004-1065

Caster Polyurethane - 125 mm 4 Q-004-1106

Caster Polyurethane 125 mm Fixed 2 Q-004-1107

L Bracket Joint 4 Q-005-0031

M8 Damper - GN352-30-25-M8-S-55 1 Q-005-0648

Towing Hole 2 Q-005-1056

Pallet Guide Corner Plate 4 Q-005-1096

64 mm FlexBeam™ Collet 23 Q-005-1426

Allen Head - M6 x 30 mm 1 Q-006-1012

Washer 10,5 x 30 x 2,5 1 Q-006-1030

Hex Head - M14 x 60 mm 2 Q-006-1036

Locking Nut M14 2 Q-006-1039

Hex Head - M10 x 25 mm 8 Q-006-1041

Locking Nut M10 46 Q-006-1042

Washer M10 2 Q-006-1043

Locking Nut M6 1 Q-006-1050

Hex Head - M10 x 95 mm 3 Q-006-1088

Hex Head - M10 x 90 mm 10 Q-006-1132

Hex Head - M10 x 30 mm 2 Q-006-1161

Locking Nut M8 25 Q-006-1181

M8 Washer 24 Q-006-1183

Countersunk - M8 x 25 mm 8 Q-006-1250

Countersunk - M8 x 20 16 Q-006-1282

Extra Low Head - M10 x 90 mm 16 Q-006-1381

Self Tapping Screw M6 Torx H60 x 16 32 Q-006-1384

Countersunk Self Tapping Screw - M6 x 20 44 Q-006-1385

Extra Low Head Allen - M10 x 25 mm 4 Q-006-1410

Hex Head Fully Threaded - M10 x 60 mm 3 Q-006-1502

Compression Spring for US Tow Hitch 1 Q-012-0007

Handlebar Attachment US 2 Q-015-0031

Tube for Handlebar US 1 Q-015-0032

Top plate with edge - 1190 x 1260 mm 1 Q-016-0216

US Modular Tow Bar VKR - LIP - 520 mm 1 Q-017-0014

Handle for Tow Hole 1 Q-017-0022

Tow Hinge Module 1 Q-017-0059

Towing Lip - 28 mm 1 Q-017-1010
