Kit Cart For Crankshaft - 1190 x 1190 mm

Q-100-0204

1 / 8

Kit Cart For Crankshaft - 1190 x 1190 mm

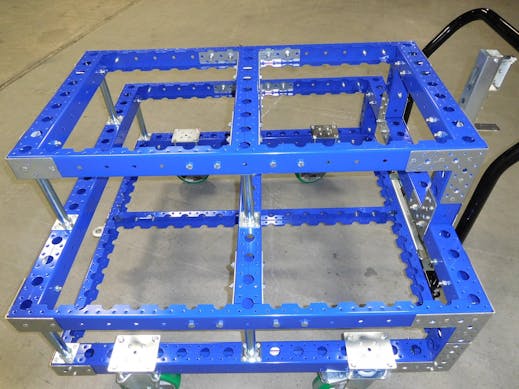

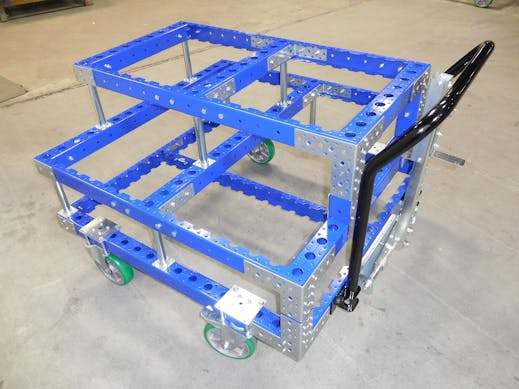

Two-level tuggable cart designed to transport crankshafts or similar parts. Equipped with a handlebar and four polyurethane casters.

100% free. No commitment.

Automotive 1764 lbs
load capacity

Kit Cart For Crankshaft – 1190 x 1190 mm

First Name Last Name Email Company City Country Phone Quantity

Comments (optional) Attach a file (optional) Upload

Maximum file size is 10mb.

We will get back to you within 24 hours. (Unless it’s during holidays.)

Technical specifications

Industry	Automotive, Commercial Vehicles, Tier One Suppliers
Transportation method	Manual, Tugger
Width	47 inch
Length	47 inch
Load capacity	1764 lbs
Caster size	8 inch
Caster Type	Polyurethane

More info

This cart was designed to transport crankshafts or parts of similar shape and weight. The cart consists of two levels that have been raised to get that parts into a more ergonomic zone for the operator. The cart is also equipped with a foot release tow bar, handlebar, and four polyurethane casters, two fixed and two swivel.

Parts included

FlexTube™ 210 mm 8 Q-000-1224

FlexBeam™ 1120 mm 11 Q-001-1301

FlexBeam™ 560 mm 6 Q-001-1309

FlexBeam™ 1190 mm FE 6 Q-001-1400

FlexBeam™ 210 mm FE 8 Q-001-1414

FlexPlate™ 4 Q-002-1001

Stiffener - Outside 6 Q-002-1050

Wheel Attachment - 105 x 77,5 mm 4 Q-004-1065

Caster Polyurethane 200 mm with Brake 2 Q-004-1099

Caster Polyurethane 200 mm Fixed 2 Q-004-1101

L Bracket Joint 10 Q-005-0031

Beam to Beam - Corner Plate Short 2 Q-005-0237

M8 Damper - GN352-30-25-M8-S-55 1 Q-005-0648

Spring Cover Plate 1 Q-005-1025

Beam to Beam Corner Plate 4 Q-005-1356

Hex Head M14 x 90 mm 1 Q-005-1406

64 mm FlexBeam™ Collet 38 Q-005-1426

Heavy Duty Joint M10 2 Q-005-1580

Washer 10,5 x 30 x 2,5 1 Q-006-1030

Locking Nut M14 1 Q-006-1039

Hex Head - M10 x 25 mm 29 Q-006-1041

Locking Nut M10 121 Q-006-1042

Washer M10 2 Q-006-1043

Hex Head - M10 x 90 mm 24 Q-006-1132

Hex Head - M10 x 30 mm 1 Q-006-1161

Locking Nut M8 1 Q-006-1181

Extra Low Head - M10 x 90 mm 32 Q-006-1381

Self Tapping Screw M6 Torx H60 x 16 210 Q-006-1384

Extra Low Head Allen - M10 x 25 mm 30 Q-006-1410

Hex Head Fully Threaded - M10 x 60 mm 5 Q-006-1502

Spring 1,5 x 15yd x 70 1 Q-012-1141

Handlebar Attachment US 2 Q-015-0031

Tube for Handlebar US 1 Q-015-0032

US Modular Tow Bar VKR - Foot Release - 670 mm 1 Q-017-0012

Foot Release Locking Lip 1 Q-017-0024

Tow Hinge Module 1 Q-017-0059

Locking lip attachment 1 Q-017-1043

Tow Hole 28 mm - Symmetric 1 Q-017-1066

Towing Lock Pin US 1 Q-017-1105

39 mm Sleeve for M10 US 2 Q-017-1106
