Q-100-0912

1 / 4

Kit cart for cardboard - 1240 x 820 mm

Custimized kit cart for transporting cardboard more efficiently.

100% free. No commitment.

Automotive 441 lbs
load capacity

Kit cart for cardboard – 1240 x 820 mm

First Name Last Name Email Company City Country Phone Quantity

Comments (optional) Attach a file (optional) Upload

Maximum file size is 10mb.

We will get back to you within 24 hours. (Unless it’s during holidays.)

Technical specifications

Category	Kitting Carts
Industry	Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy
Width	32 inch
Length	49 inch
Transportation method	Manual
Caster size	8 inch
Caster Type	Nylon
Type of Load	Cardboard
Load capacity	441 lbs

More info

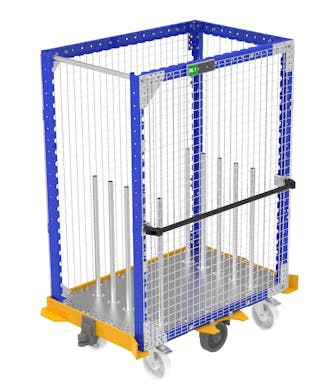

This kit-cart has been specially designed to hold cardboard in place. It is equipped with tubes coming up from the flat steel deck which act as a guide to hold the cardboard in place. It is equipped with wire mesh on the outside to ensure that the cardboard dont fall out of place. It is also equipped with a handle bar for manual transportation.

Parts included

FlexTube (One plate) 770 mm 10 Q-000-0141

FlexBeam STS FE - 820 mm 3 Q-001-0010

FlexQube 2 Q-001-1078

FlexBeam™ - 1470 mm FE 2 Q-001-1503

FlexBeam™ 1540 mm FE 2 Q-001-1504

FlexPlate™ 2 Q-002-1001

Flexplate™ M10 12 Q-002-1162

FlexPlate™ half 8 Q-002-1369

Swivel 200 mm Nylon Brake Center 2 Q-004-0044

Spring Threaded Tube Connectors 2 Q-005-0469

Triangle Joint 4 Q-005-0483

Triangular Caster Attachment w Edge 4 Q-005-0489

Label Adapter Plate - 210 x 70 mm 1 Q-005-0667

Handle for 30 mm Tube 2 Q-005-1240

Beam to Beam Corner Plate 4 Q-005-1356

64 mm FlexBeam™ Collet 4 Q-005-1426

M6 x 20 K6S 10.9 Round Head (black) 16 Q-006-1018

Washer 10,5 x 30 x 2,5 25 Q-006-1030

Locking Nut M10 63 Q-006-1042

Hex Head - M10 x 95 mm 4 Q-006-1088

Hex Head - M10 x 30 mm 19 Q-006-1161

Hex Head - M10 x 40 2 Q-006-1208

Extra low head [1,5 mm] M10x40 mm 2 Q-006-1361

Extra Low Head - M10 x 90 mm 8 Q-006-1381

Self Tapping Screw M6 Torx H60 x 16 136 Q-006-1384

Countersunk Self Tapping Screw - M6 x 20 60 Q-006-1385

Extra Low Head Allen - M10 x 25 mm 26 Q-006-1410

Hex Head Fully Threaded - M10 x 60 mm 4 Q-006-1502

Top Plate - 1240 x 820 mm 1 Q-016-0312

Outer Tube (No Plate) - 820 mm 1 Q-025-0820

Outer tube (No plate) - 1130 mm 1 Q-025-1130
