Q-100-1369

1 / 7

Kit Cart - 700 x 1330 mm

Shelf Kit-Cart designed to be used in mother daughter system in combination with Q-100-1333

100% free. No commitment.

Automotive 661 lbs
load capacity

Kit Cart – 700 x 1330 mm

First Name Last Name Email Company City Country Phone Quantity

Comments (optional) Attach a file (optional) Upload

Maximum file size is 10mb.

We will get back to you within 24 hours. (Unless it’s during holidays.)

Technical specifications

Category	Kitting Carts
Transportation method	Manual
Industry	Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy
Length	52 inch
Levels	3
Load capacity	661 lbs
Load Capacity per Level	220 lbs
Width	28 inch
Caster size	5 inch
Caster Type	Gray

More info

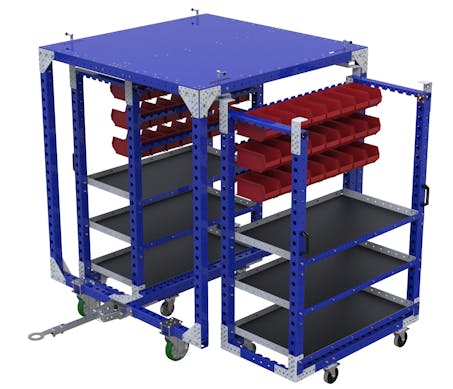

This shelf cart is designed to be used in a mother daughter system in combination with Q-100-1333. The cart is equipped with three flat shelves with a lip, three holders for bins and two handlebars for manual transportation.

Parts included

FlexBeam™ - 1610 mm 8 Q-001-1294

FlexBeam™ - 1260 mm 4 Q-001-1299

FlexBeam™ 1190 mm FE 3 Q-001-1400

FlexBeam™ 700 mm FE 4 Q-001-1407

FlexPlate™ 6 Q-002-1001

Swivel Caster - 125 mm 2 Q-004-1363

125 mm Swivel Caster with Brake 2 Q-004-1364

L-shape Daughter cart guide 4 Q-005-0258

Caster to Beam Attachment - 80 x 60 mm 4 Q-005-0265

L-Bracket Joint - 70 x 70 mm 6 Q-005-0429

Beam to Beam Corner Plate 4 Q-005-1356

64 mm FlexBeam™ Collet 26 Q-005-1426

Hex Head - M10 x 25 mm 6 Q-006-1041

Locking Nut M10 52 Q-006-1042

M8 x 20 mm MELC6S 10.9 Allen Head 4 Q-006-1044

Hex Head - M8 x 16 mm 36 Q-006-1120

Hex Head - M10 x 90 mm 26 Q-006-1132

Locking Nut M8 56 Q-006-1181

M8 Washer 28 Q-006-1183

M8 x 16 mm Countersunk 16 Q-006-1214

Extra Low Head - M10 x 90 mm 8 Q-006-1381

Self Tapping Screw M6 Torx H60 x 16 132 Q-006-1384

Extra Low Head Allen - M10 x 25 mm 12 Q-006-1410

M8 Handle - 140 mm 2 Q-015-1409

Angled Plate - 1318 mm 6 Q-016-0185
