Q-100-1696

1 / 4

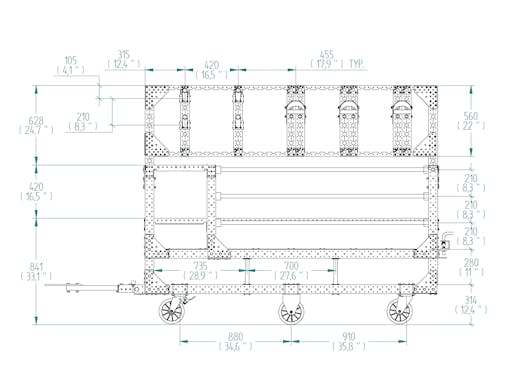

Kit Cart - 1050 x 2310 mm

This three level flow shelf cart is designed for bins, totes and boxes.

100% free. No commitment.

Automotive 1543 lbs
load capacity

Kit Cart – 1050 x 2310 mm

First Name Last Name Email Company City Country Phone Quantity

Comments (optional) Attach a file (optional) Upload

Maximum file size is 10mb.

We will get back to you within 24 hours. (Unless it’s during holidays.)

Technical specifications

Category	Kitting Carts
Industry	Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy
Type of tow bar	Tongue and Hitch
Width	41 inch
Length	91 inch
Load capacity	1543 lbs
Transportation method	Tugger
Caster size	8 inch
Caster Type	Polyurethane
Type of Load	Bins, Boxes, Misc parts, Totes

More info

Three level flow shelf cart commonly used for transportation of totes/bins/boxes or loose components. The cart is equipped with six high-quality polyurethane/nylon casters with brakes in the swivel casters and a tow bar for connection to a tugger train.

Parts included

FlexTube™ 210 mm 4 Q-000-1224

FlexQube 4 Q-001-1078

FlexPlate™ 49 Q-002-1001

FlexPlate™ half 4 Q-002-1369

Wheel Attachment - 105 x 77,5 mm 8 Q-004-1065

Polyurethan 200 mm with Brake IP2 2 Q-004-1210

Caster Polyurethane - 200 mm Swivel 2 Q-004-1211

Caster Polyurethan 200 mm Fixed IP2 2 Q-004-1212

L Bracket Joint 4 Q-005-0031

L-Bracket Joint - 70 x 70 mm 4 Q-005-0429

Spring Threaded Tube Connectors 12 Q-005-0469

Triangle Joint 29 Q-005-0483

Rounded Hanger (150 mm) - 770 mm Long 3 Q-005-0656

Angled Tube Hanger - 750 mm 4 Q-005-0786

Attachment for Removable Tube 12 Q-005-0901

Beam to Beam Corner Plate 6 Q-005-1356

64 mm FlexBeam™ Collet 56 Q-005-1426

Hex Head - M14 x 60 mm 4 Q-006-1036

Locking Nut M14 4 Q-006-1039

Hex Head - M10 x 25 mm 11 Q-006-1041

Locking Nut M10 107 Q-006-1042

M10 x 160 mm 6 Q-006-1055

Hex Head - M10 x 95 mm 20 Q-006-1088

Hex Head - M8 x 16 mm 8 Q-006-1120

Hex Head - M10 x 90 mm 53 Q-006-1132

Locking Nut M8 8 Q-006-1181

Extra low head [1,5 mm] M10x40 mm 6 Q-006-1361

Extra Low Head - M10 x 90 mm 15 Q-006-1381

Self Tapping Screw M6 Torx H60 x 16 608 Q-006-1384

Countersunk Self Tapping Screw - M6 x 20 48 Q-006-1385

Extra Low Head Allen - M10 x 25 mm 2 Q-006-1410

Angled Plate - 1038 mm 1 Q-016-0189

Shelf attachment plate - 490 mm 1 Q-016-0441

Shelf Attachment Plate - 630 mm 1 Q-016-0572

Top Plate Half - 910 x 1050 mm 2 Q-016-0788

Flat Shelf - 420 x 1050 mm 1 Q-016-0806

Shelf attachment plate - 560 mm 3 Q-016-0807

Shelf Attachment Plate - 1820 mm 1 Q-016-0808

Top Plate - 490 x 1050 mm 1 Q-016-0810

US Modular Tow Bar VKR - LIP - 520 mm 1 Q-017-0014

Spring Loaded Tow Hinge 1 Q-017-0067

Heavy Duty Tow Hinge - Narrow 1 Q-017-0087

Towing Lip - 28 mm 1 Q-017-1010

FlexBeam™ - 490 mm STS 16 Q-020-0490

FlexBeam™ - 630 mm 8 Q-020-0630

FlexBeam - 910 mm 4 Q-020-0910

FlexBeam™ 1540 mm STS 4 Q-020-1540

FlexBeam™ FE - 420 mm 2 Q-021-0420

FlexBeam™ STS FE - 980 mm 1 Q-021-0980

FlexBeam™ FE - 2170 mm 5 Q-021-2170

FlexBeam™ FE - 2310 mm 5 Q-021-2310

Outer tube (No plate) - 140 mm 3 Q-025-0140

Outer Tube (No Plate) - 1674 mm 6 Q-025-1674
