Hose Cart with Swingable Arms
Hose Cart with Swingable Arms
Hose Cart with Swingable Arms
Q-100-0051

Hose Cart with Swingable Arms

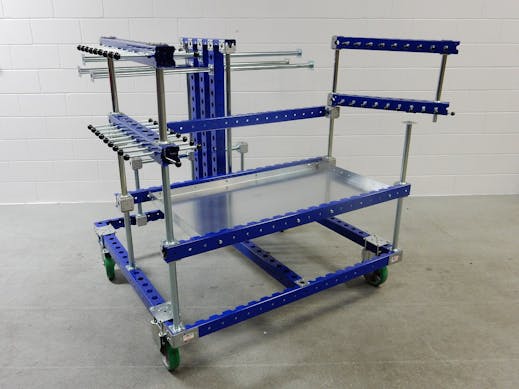

Custom designed kit cart with Swingable Arms is built for hanging and organizing different types of hoses and tubing with a swingable arm for easier handling.

100% free. No commitment.

Automotive 220 lbs
load capacity
Get a quote
Close

Hose Cart with Swingable Arms

Maximum file size is 10mb.

We will get back to you within 24 hours. (Unless it’s during holidays.)

Technical specifications
Category Standard
Industry Defense Equipment, Industrial Machinery, Wind & Energy
Length 58 inch
Load capacity 220 lbs
Width 55 inch
Transportation method Manual
Caster size 8 inch
Caster Type Polyurethane
More info

This specialty cart was designed to help present hoses to the operators. It can also be used for transporting/ presenting tubes, wires, chains and ropes. It comes equipped with forklift pockets so it can be transported via forklift if needed. It also has four high quality polyurethane casters for easier movability.

Parts included
FlexTube Inner - 420 mm 2 Q-000-0043
Plastic tube - 16 mm 72 Q-000-0050
Solid Tube - 10 mm 72 Q-000-0051
FlexTube™ 700 mm 6 Q-000-1002
FlexTube™ 70 mm 2 Q-000-1050
FlexTube™ 350 mm 12 Q-000-1055
FlexTube™ 280 mm 4 Q-000-1262
FlexTube™ 980 mm 2 Q-000-1399
FlexQube 22 Q-001-1078
FlexBeam™ - 1330 mm 6 Q-001-1298
FlexBeam™ 1050 mm 6 Q-001-1302
FlexBeam™ 700 mm 8 Q-001-1307
FlexBeam™ 630 mm FE 2 Q-001-1408
FlexBeam™ - 1470 mm FE 4 Q-001-1503
FlexPlate™ 35 Q-002-1001
Flexplate™ M10 6 Q-002-1162
Wheel Attachment - 105 x 77,5 mm 4 Q-004-1065
Caster Polyurethane 200 mm with Brake 2 Q-004-1099
Caster Polyurethane 200 mm Fixed 2 Q-004-1101
Spherical Knob 72 Q-005-1146
RTE Plug 2 Q-005-1289
Fork Guide - 210 x 100 mm 4 Q-005-1923
Hex Head - M10 x 25 mm 2 Q-006-1041
Locking Nut M10 166 Q-006-1042
Hex Head - M8 x 16 mm 8 Q-006-1120
Hex Head - M10 x 90 mm 16 Q-006-1132
Locking Nut M8 8 Q-006-1181
Self Tapping Screw M6 Torx H60 x 16 356 Q-006-1384
Hex Head Fully Threaded - M10 x 60 mm 2 Q-006-1502
Washer - 30 x 5 mm 2 Q-015-1046
Flat Shelf - 1190 x 700 mm 1 Q-016-0009
