Flow Shelf Cart 1190 x 770 mm
Flow Shelf Cart 1190 x 770 mm
Flow Shelf Cart 1190 x 770 mm
Flow Shelf Cart 1190 x 770 mm
Q-100-0280

Flow Shelf Cart 1190 x 770 mm

Flow shelf cart used for presenting materials to the operators.

100% free. No commitment.

Automotive 441 lbs
load capacity
Get a quote
Close

Flow Shelf Cart 1190 x 770 mm

Maximum file size is 10mb.

We will get back to you within 24 hours. (Unless it’s during holidays.)

Technical specifications
Category Flow Shelf
Industry Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy
Width 30 inch
Levels 4
Load capacity 441 lbs
Load Capacity per Level 110 lbs
Transportation method Manual
Caster size 8 inch
Caster Type Nylon
Type of Load Bins, Boxes, Misc parts, Totes
More info

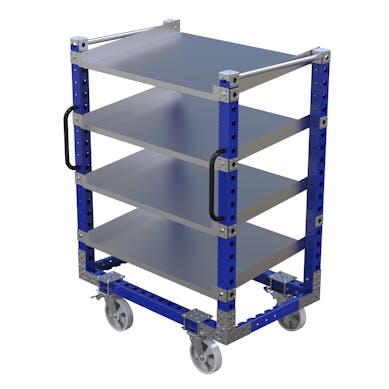

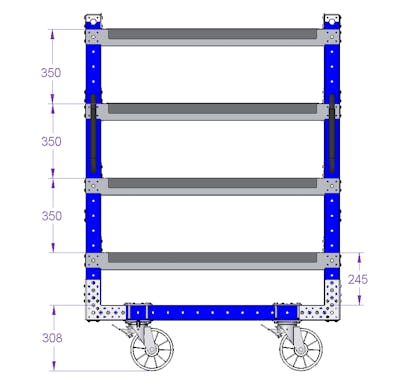

Flow Shelf Cart with angled shelves that allows for better access into bins and totes. Shelf height can easily be adjusted within 70 mm increments. The solution can be adjusted with more/less shelves. This cart also comes equipped with two handles for easier manual transportation.

Parts included
FlexTube™ 630 mm 2 Q-000-1312
FlexQube 4 Q-001-1078
FlexBeam™ - 1330 mm 8 Q-001-1298
FlexBeam™ 1120 mm 4 Q-001-1301
FlexBeam™ 770 mm FE 2 Q-001-1406
FlexPlate™ 22 Q-002-1001
Wheel Attachment - 105 x 77,5 mm 4 Q-004-1065
Directional Locking Plate 1 Q-004-1130
Polyamide Caster 200 mm with Brake 2 Q-004-1351
Polyamide Caster 200 mm without Brake 2 Q-004-1352
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 14 Q-005-1426
Locking Nut M10 50 Q-006-1042
Hex Head - M10 x 95 mm 4 Q-006-1088
Hex Head - M8 x 16 mm 4 Q-006-1120
Hex Head - M10 x 90 mm 22 Q-006-1132
M8 Washer 4 Q-006-1183
Extra Low Head - M10 x 90 mm 12 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 208 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 12 Q-006-1410
M8 Handlebar US - 350 mm 2 Q-015-1089
Flow Shelf - 1048 x 773 mm 4 Q-016-1026
Tugger Train Opener - 38 mm 1 Q-019-1002
