Q-100-0454

1 / 4

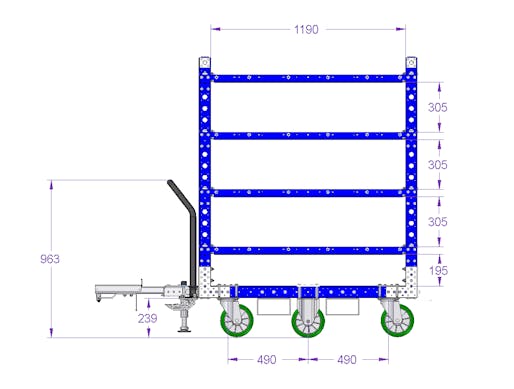

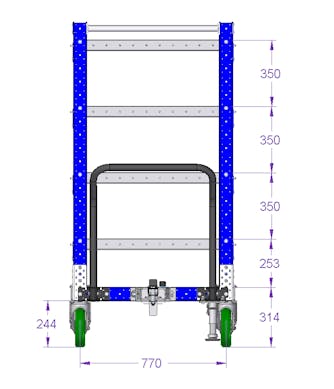

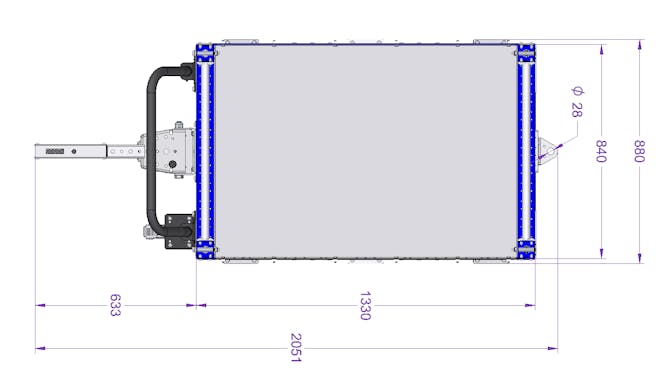

Flat Shelf Cart - 840 x 1330 mm

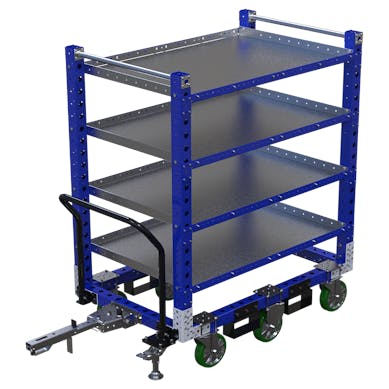

Robust four level flat shelf tugger cart equipped with a handlebar, floor brake, fork pockets, and six polyurethane casters.

100% free. No commitment.

Automotive 441 lbs
load capacity

Flat Shelf Cart – 840 x 1330 mm

First Name Last Name Email Company City Country Phone Quantity

Comments (optional) Attach a file (optional) Upload

Maximum file size is 10mb.

We will get back to you within 24 hours. (Unless it’s during holidays.)

Technical specifications

Category	Flat Shelf
Industry	Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy
Length	52 inch
Levels	4
Load Capacity per Level	110 lbs
Width	33 inch
Type of tow bar	Foot release
Load capacity	441 lbs
Transportation method	Manual, Tugger
Caster size	8 inch
Caster Type	Polyurethane

More info

Robust four levels flat shelf tugger cart commonly used for transportation of totes/bins/boxes or loose components. The cart is also equipped with a handlebar, tow bar, floor brake, fork pockets and six high quality polyurethane casters which gives the cart excellent tracking properties and silent movement when connected in a train.

Parts included

FlexTube™ 700 mm 2 Q-000-1002

FlexPlate™ 12 Q-002-1001

Wheel Attachment - 105 x 77,5 mm 6 Q-004-1065

Caster Polyurethane - 200 mm Swivel 4 Q-004-1211

Caster Polyurethan 200 mm Fixed IP2 2 Q-004-1212

Floor Brake LTL - 200 mm 1 Q-004-1359

Fork Tunnel US - 80 mm 4 Q-005-0431

Spring Cover Plate 1 Q-005-1025

Beam to Beam Corner Plate 4 Q-005-1356

Hex Head M14 x 90 mm 1 Q-005-1406

64 mm FlexBeam™ Collet 52 Q-005-1426

Hex Head - M14 x 60 mm 2 Q-006-1036

Locking Nut M14 3 Q-006-1039

Hex Head - M10 x 25 mm 2 Q-006-1041

Locking Nut M10 96 Q-006-1042

Washer M10 12 Q-006-1043

Hex Head - M10 x 95 mm 10 Q-006-1088

Hex Head - M8 x 16 mm 48 Q-006-1120

Hex Head - M10 x 90 mm 50 Q-006-1132

Hex Head - M10 x 30 mm 4 Q-006-1161

Locking Nut M8 48 Q-006-1181

Extra Low Head - M10 x 90 mm 22 Q-006-1381

Self Tapping Screw M6 Torx H60 x 16 188 Q-006-1384

Low Allen Head - M10 x 16 mm 2 Q-006-1409

Extra Low Head Allen - M10 x 25 mm 2 Q-006-1410

Hex Head Fully Threaded - M10 x 60 mm 4 Q-006-1502

Spring 1,5 x 15yd x 70 1 Q-012-1141

Handlebar Attachment EUR 1 Q-015-0026

Handlebar / Floor brake attachment EUR 1 Q-015-0027

Tube for Handlebar EUR 1 Q-015-0033

Flat Shelf - 1189 x 840 mm 4 Q-016-0153

Angled plate - 1318 mm 8 Q-016-0154

Foot Release Locking Lip 1 Q-017-0024

US Modular Tow Bar VKR - Foot Release - 530 mm 1 Q-017-0025

Heavy Duty Tow Hinge - Narrow 1 Q-017-0087

Tow Hole 28 mm - Symmetric 1 Q-017-1066

Towing Lock Pin US 1 Q-017-1105

39 mm Sleeve for M10 US 2 Q-017-1106
