Q-100-1020

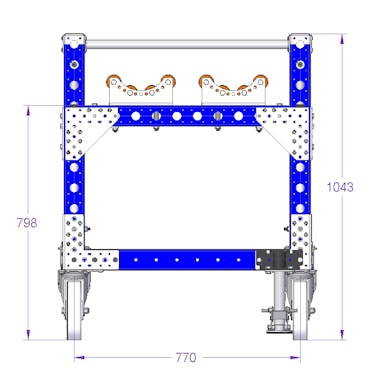

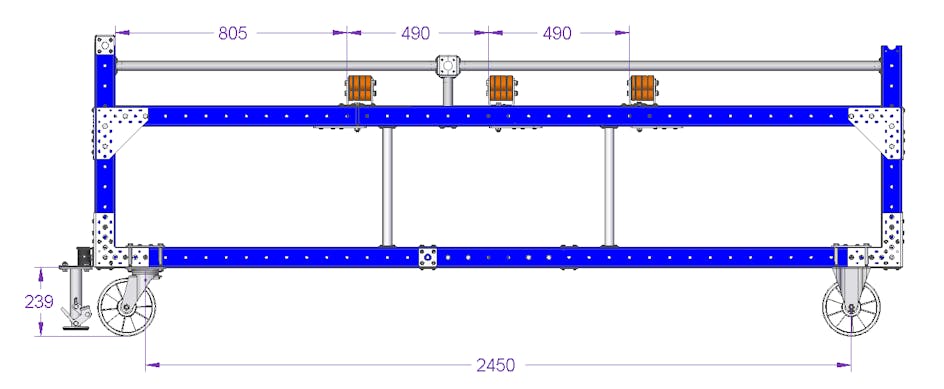

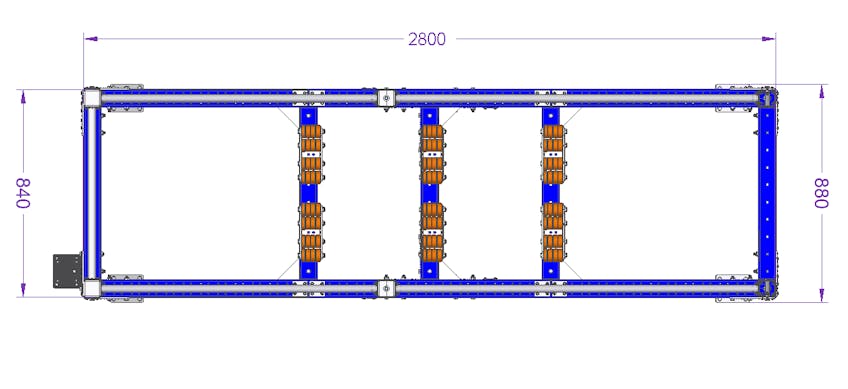

Cylinder Cart - 2800 x 840 mm

Push cart for two long cylinders which rests in the polyurethane roller cradles. The cart is equipped with a handlebar, floor brake and nylon swivel casters.

100% free. No commitment.

Automotive 1499 lbs
load capacity

Cylinder Cart – 2800 x 840 mm

First Name Last Name Email Company City Country Phone Quantity

Comments (optional) Attach a file (optional) Upload

Maximum file size is 10mb.

We will get back to you within 24 hours. (Unless it’s during holidays.)

Technical specifications

Category	Standard
Industry	Defense Equipment, Industrial Machinery, Wind & Energy
Width	33 inch
Length	110 inch
Load capacity	1499 lbs
Transportation method	Manual
Caster size	8 inch
Caster Type	Nylon
Type of Load	Cylinders

More info

This cart was designed to store and transport two long cylinders or other long similar parts. The cylinders rest on the polyurethane roller cradles which protects the parts from being damaged and allows you to rotate them while on the cart. The cart is also equipped with a handlebar, floor brake and four nylon casters.

Parts included

FlexTube™ 700 mm 1 Q-000-1002

FlexTube™ 420 mm 4 Q-000-1270

FlexQube 6 Q-001-1078

FlexBeam™ - 1610 mm 4 Q-001-1294

FlexBeam™ 1120 mm 4 Q-001-1301

FlexBeam™ 700 mm 8 Q-001-1307

FlexBeam™ 840 mm FE 6 Q-001-1405

FlexBeam™ 700 mm FE 12 Q-001-1407

FlexBeam 1820 mm STS FE 4 Q-001-1508

FlexPlate™ 30 Q-002-1001

Flexplate™ M10 12 Q-002-1162

Guide Wheel 72 Q-004-0042

Guide Wheel 24 Q-004-0043

Wheel Attachment - 105 x 77,5 mm 4 Q-004-1065

Polyamide Caster 200 mm without Brake 2 Q-004-1352

Polyamide Caster 200 mm Fixed 2 Q-004-1354

US Floor Brake - 200 mm 1 Q-004-1613

L Bracket Joint 4 Q-005-0031

Spring Threaded Tube Connectors 12 Q-005-0469

Triangle Joint 14 Q-005-0483

Cylinder Roller Attachment - 215 x 90 mm 6 Q-005-0687

Beam to Beam Corner Plate 4 Q-005-1356

64 mm FlexBeam™ Collet 52 Q-005-1426

Hex Head - M10 x 25 mm 9 Q-006-1041

Locking Nut M10 116 Q-006-1042

Hex Head - M10 x 95 mm 6 Q-006-1088

Hex Head - M10 x 90 mm 55 Q-006-1132

Hex Head - M10 x 100 mm 24 Q-006-1302

Extra Low Head - M10 x 90 mm 19 Q-006-1381

Self Tapping Screw M6 Torx H60 x 16 336 Q-006-1384

Extra Low Head Allen - M10 x 25 mm 15 Q-006-1410

Handlebar / Floor Brake Attachment US 1 Q-015-0029

Outer Tube (No Plate) - 172 mm 2 Q-025-0172

Outer Tube (No Plate) - 1144 mm 2 Q-025-1114

Outer Tube (No Plate) - 1464 mm 2 Q-025-1464
