Q-100-1405

Compartment Cart - 1260 x 1330 mm

Compartment cart designed to house and transport panels, frames or big flat parts.

100% free. No commitment.

Automotive 1202 lbs
load capacity

Compartment Cart – 1260 x 1330 mm

First Name Last Name Email Company City Country Phone Quantity

Comments (optional) Attach a file (optional) Upload

Maximum file size is 10mb.

We will get back to you within 24 hours. (Unless it’s during holidays.)

Technical specifications

Category	Specialized Carts
Transportation method	Manual
Industry	Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy
Width	50 inch
Length	52 inch
Load capacity	1202 lbs
Caster size	5 inch
Caster Type	Polyurethane

More info

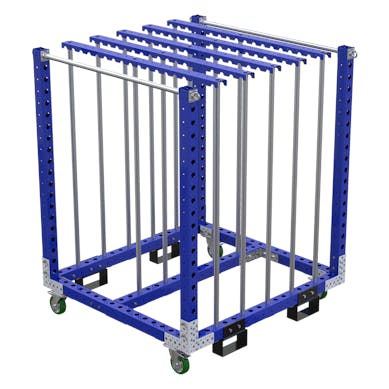

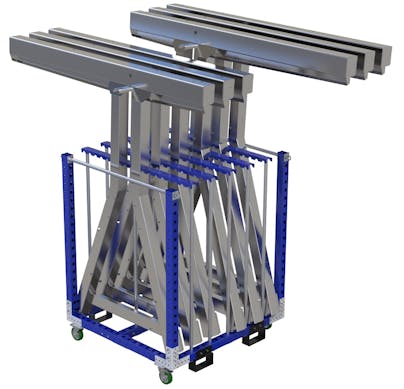

This big compartment cart is designed to hold and transport large parts like panels, frames, etc. Using the tubes & beams in the middle structures lets them act as dividers. The cart is equipped with fork pockets for lifting and transportation via forklift and has four high-quality polyurethane casters attached.

Parts included

FlexTube™ 1120 mm 2 Q-000-1258

FlexBeam™ - 1260 mm 4 Q-001-1299

FlexBeam™ 1190 mm FE 2 Q-001-1400

FlexBeam™ 1120 mm FE 2 Q-001-1401

FlexBeam™ 1260 mm FE 7 Q-001-1500

FlexBeam™ - 1400 mm FE 8 Q-001-1502

FlexPlate™ 4 Q-002-1001

Flexplate™ M10 11 Q-002-1162

FlexPlate™ half 8 Q-002-1369

L Bracket Joint 2 Q-005-0031

Caster to Beam Attachment - 80 x 60 mm 4 Q-005-0265

Fork Tunnel US - 80 mm 4 Q-005-0431

Spring Threaded Tube Connectors 30 Q-005-0469

Triangle Joint 2 Q-005-0483

Beam to Beam Corner Plate 4 Q-005-1356

64 mm FlexBeam™ Collet 32 Q-005-1426

Lifting eyebolts DIN 580-M10-NI 4 Q-006-0041

Locking Nut M10 48 Q-006-1042

Hex Head - M10 x 90 mm 16 Q-006-1132

Locking Nut M8 16 Q-006-1181

Hex Head - M10 x 40 15 Q-006-1208

M8 x 16 mm Countersunk 16 Q-006-1214

Extra Low Head - M10 x 90 mm 24 Q-006-1381

Self Tapping Screw M6 Torx H60 x 16 126 Q-006-1384

Extra Low Head Allen - M10 x 25 mm 4 Q-006-1410
